Silt management on construction sites with constrained linear footprints
Bringing innovation to ditches on construction sites to trap and manage silt
By their nature linear construction sites involving railway lines, roads and pipe lines often have a constrained or restricted footprint. The topography tends to be challenging with narrow boundaries stretching vast distances.
On these types of sites there is usually little room for attenuation ponds or settlement features to help manage silty water during construction work.
Zero energy systems that respond to rain

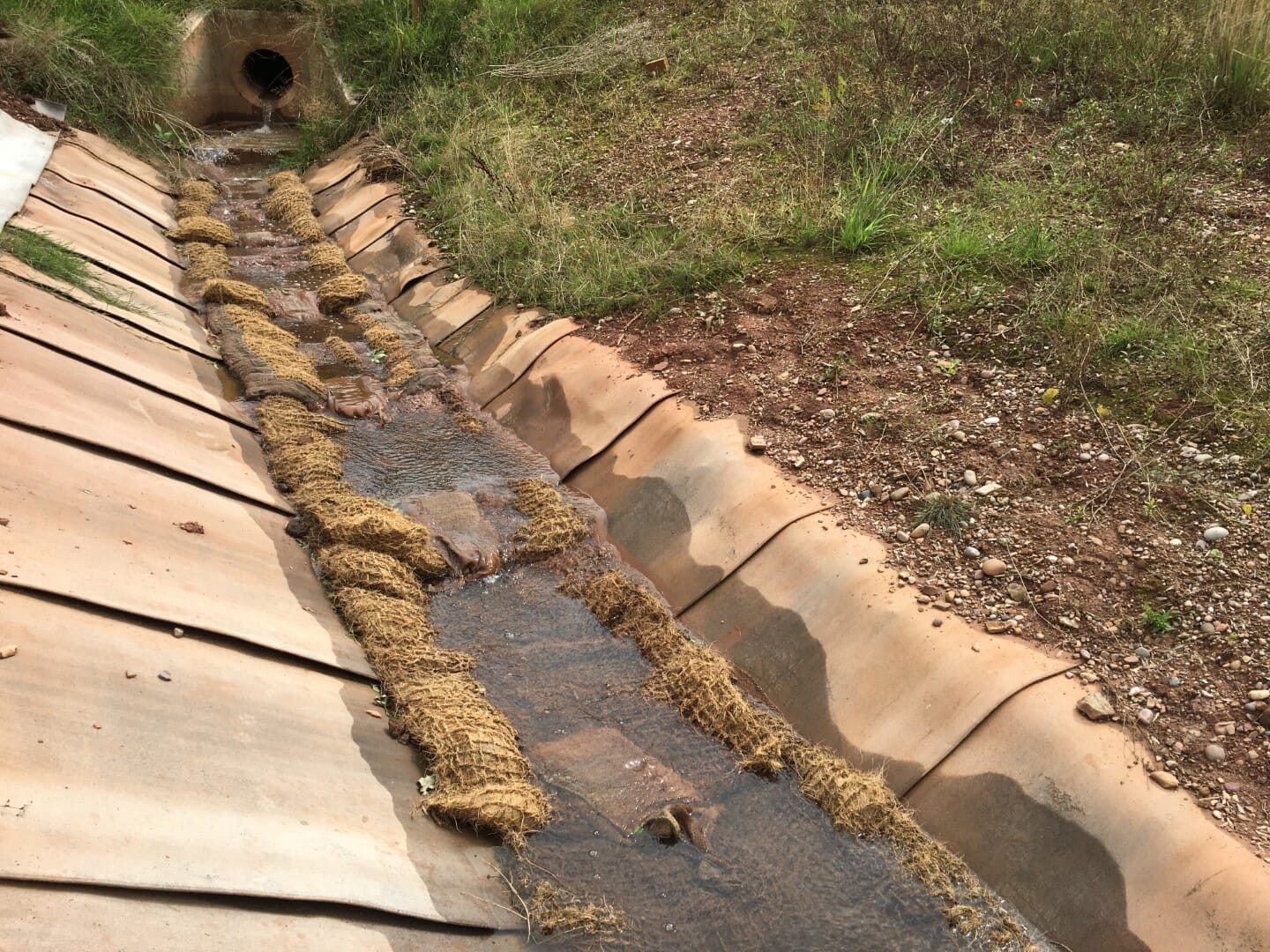

Our innovative approach prevents erosion by controlling the water flow on site, focussing it into managed ditches containing Silt MatTM, Floc MatsTM Rock Checks and Silt Wattles that help slow the flow of the water and remove sediment from the water.
These systems are passive and require no energy to run. They can be put in place ahead of rain to protect sites from silt pollution at any time of year.

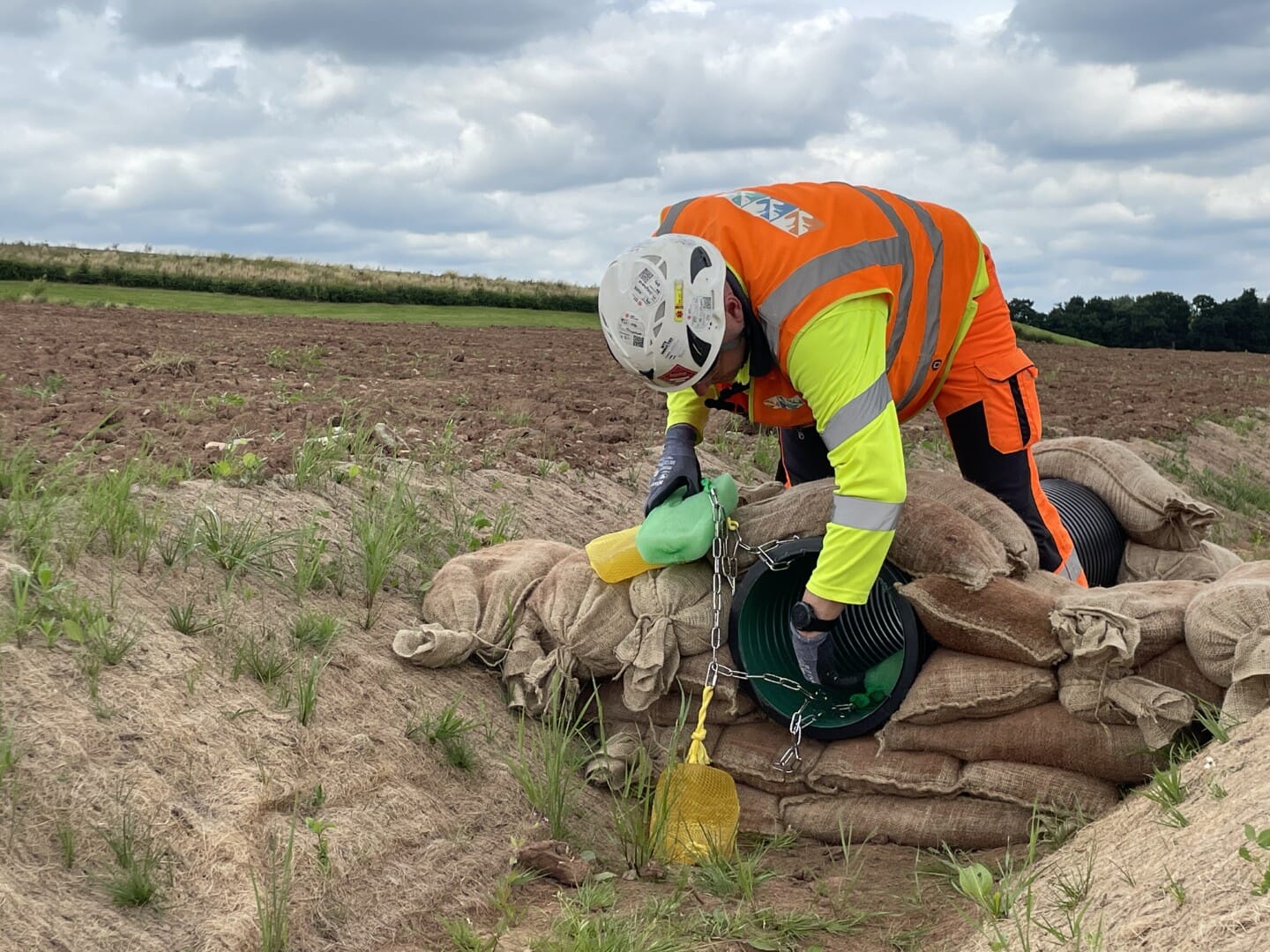

We use other gravity-fed rain-ready products to enhance sediment separation from water such as Gel Flocculant placed in pipes located in ditches. This technique binds solids together which drop out of suspension.
Rain activates these systems and the products require minimal maintenance, however monitoring is recommended as part of your water management plan.
Retain soils on site, release clear water from site
As dirty water moves along a ditch, we want to be able to transfer those solids into a state where they can settle, allowing us to trap them or separate them out. This then leaves us with clear water that is safe to emit into rivers, streams or other watercourses.
When working in these environments we need to think about where we are using water, and how we stop it from running off-site, where it could cause harm to the environment or flood neighbouring land.
We aim to move clear water off site and retain the silt and sediment onsite.
Innovative approaches to treating water on sites constrained by size
We are leading the way in capturing and treating site water by using interceptor ditches when there is limited capacity to store water within the site boundary. We are further developing these processes for non-linear situations, saving space on other constrained sites and enhancing the performance on attenuation ponds or lagoons.
We are creating new, innovative techniques such as using smaller interceptor features, called catch pits, which we use at frequent intervals along a ditch.
Frog Environmental has developed novel techniques to slow the water down, treating it with Gel Flocculant, which causes the sediment to accrete, and then dropping it out into the ditch or onto a Silt Mat or Floc Mat.
We also help you understand your soil structure and make up. Understanding the particle size of your silts is very important when writing your Surface Water Management Plans.
Reusing Floc Mats and Silt Mats as erosion control on site
The biodegradable silt mats will silt up over time, at which point they can be replaced, and the silt-laden ones can be used to protect exposed soils elsewhere on-site by pinning or laying them out.
They can be seeded, or if left they will vegetate naturally, whilst protecting the soil from erosion. They can also be used around hedgerow or tree planting as biodegradable, moisture-retaining and weed suppression.
Incorporating this as part of a materials management plan that considers waste regulations will meet compliance and provide an excellent way to retain the nutrient-rich soil on site.
Rain Ready® site solutions
Site assessment and ground investigation can be complex, but for the purposes of understanding whether a flocculant is likely to be needed during temporary works, we can ask the following two questions:
Will site drainage during construction be connected to ditches, streams, brooks or rivers?
Will any top soil be removed, exposing a clayey sub-soil during works?
If the answer to both these questions is ‘yes’, it is advisable to engage with environmental support, as your site is likely to be at a higher risk of causing a silt pollution event.
Attenuation ponds versus linear ditch systems?
We would always prefer to design in attenuation ponds because they create capacity in the system to cope with the spikes in water flow. But there are times when we do not have the ideal situation and are working within physical constraints, this is where we become more creative.
We recommend early consideration in the project to understand each dynamic phase, for example, exploring how the site topography will change so that we can create a plan to allow for this.
Low carbon, passive solution
These low-carbon systems evolve with the changes in the site. This helps us resolve many issues which could be costly if not anticipated and dealt with at each stage. It also avoids the use of pumps, meaning that the energy use in the project is zero, and the system is always ready to go whether you are on-site or not.
