Aeration of Water

OctoAir® Aeration Systems

OctoAir is a high-performance fine-bubble aeration system designed for improving water quality across lakes, reservoirs, rivers, estuaries and construction sites.

OctoAir

Value driven, the OctoAir 10® and OctoAir 60® range provides long term solutions to reduce operational costs and improve water quality, no matter the scale of project.

Built from marine-grade stainless steel with corrosion-resistant Bubble Tubing, OctoAir provides reliable circulation, oxygen transfer and mixing in both fresh and saline waters.

Exclusive to Frog Environmental in the UK, OctoAir is trusted for applications including:

  • Aeration; protecting aquatic life and reducing nutrient spikes that drive algae blooms
  • Mixing; preventing issues caused by stagnant water
  • Circulation and upwelling; improving turnover in stratified waters
  • Destratification; reducing negative summer impacts such as harmful algae blooms (HABs)
  • De-icing; preventing freezing during winter months
  • Nutrient reduction; proven to lower manganese and ammonia levels, improving water quality
Request a Quote
OctoAir

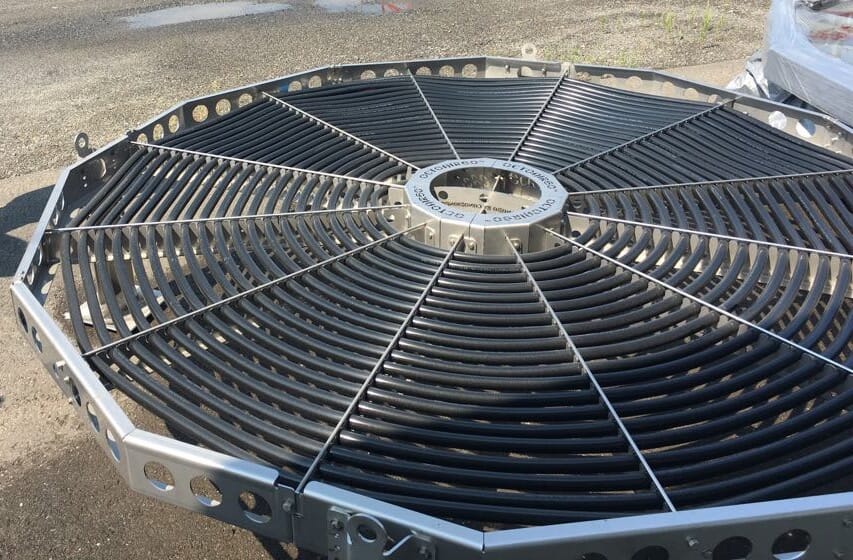

OctoAir 60 2
O-Canadianpond-0023-octoair_pool (Large)
Key Benefits

Why choose OctoAir®?

Resilient engineering

Built using a corrosion-resistant stainless-steel frame, housing award-winning Bubble Tubing® technology, it’s resistant to chemical and temperature extremes

Superior oxygen transfer

Fine bubbles improve oxygenation throughout the water column

Versatile deployment

Suited to restoration, water mixing, silt management, and ice prevention

Robust design

Resistant to UV, chemicals, salinity, and pH variation

Minimal maintenance

Self-purging tubing; annual cleaning with Bio-Purge keeps it efficient

Expert support

UK technical advice, optional CFD modelling, and installer network

Which OctoAir is right for you?

Technical specification OctoAir 10 – compact design OctoAir 60 – large scale aeration
Designed for Smaller projects, localised aeration, waste water and industrial effluent lagoons Large reservoirs, lagoons, industrial scale applications
Applications
  • Aeration
  • De-icing
  • Mixing
  • Water circulation and upwelling
  • Destratification
  • Nutrient removal (excessive algae etc)
  • Aeration
  • De-icing
  • Mixing
  • Water circulation and upwelling
  • Destratification
  • Nutrient removal (excessive algae etc)
Materials Robust stainless steel 304 frame with 4 adjustable legs
30 m of 1/2″ Bubble Tubing®
Check valveNOT INCLUDED: – Torpedo Tubing Airline Feeder Hose – Compressor
Robust stainless steel 304 frame with 4 adjustable legs
90m of 3/4″ Bubble Tubing®
Check valveNOT INCLUDED: – Torpedo Tubing Airline Feeder Hose – Compressor
Delivery Comes assembled. The legs are adjustable and can be fixed to the unit once delivered. Requires on-site assembly
Warranty 1 year manufacturer warranty 1 year manufacturer warranty
Dimensions
Diameter
Weight
122 cm

29.4kg

244 cm

143kg

System pressure for optimal performance 150 PSI / 10 BAR (maximum) – 20 PSI /1.4 BAR (minimum) 150 PSI / 10 BAR (maximum) – 20 PSI /1.4 BAR (minimum)
Airflow capacity Up to 10 CFM Up to 75 CFM
