Flocculant in Water Treatment

Gel Flocculant for Silt Control

Gel Flocculant is a highly effective and environmentally safe way of introducing flocculant into ditches, drains, pumped discharges or effluent streams to cleanse muddy water and trap silt and other contaminants like nutrients and metals.

View Key Benefits Request a Quote

Mats, Gel Flocculant, ditch, water treatment

Gel Flocculant is a safe, solid gel block flocculant that activates on contact with flowing water.

It’s unique formulation encourages fine silts and mobilised clay to clump together, settle and be captured, providing low carbon, highly cost effective water treatment on construction sites.

Unmade ground on construction sites are particularly vulnerable and without adequate protection, rain will lead to fine particles of clayey soil and silt being carried long distances off site into streams and rivers causing pollution and harm to aquatic ecosystems.

At Frog Environmental, we’re proud to be the exclusive UK and European partner for Clearflow Group’s Gel Flocculant and GFR water treatment systems.

Clearflow Gel Flocculant supports:

Construction and infrastructure sites
Runoff attenuation features
Agricultural and forestry operations
Enhance artificial dispersion
Mining & quarrying operations

Get a quote

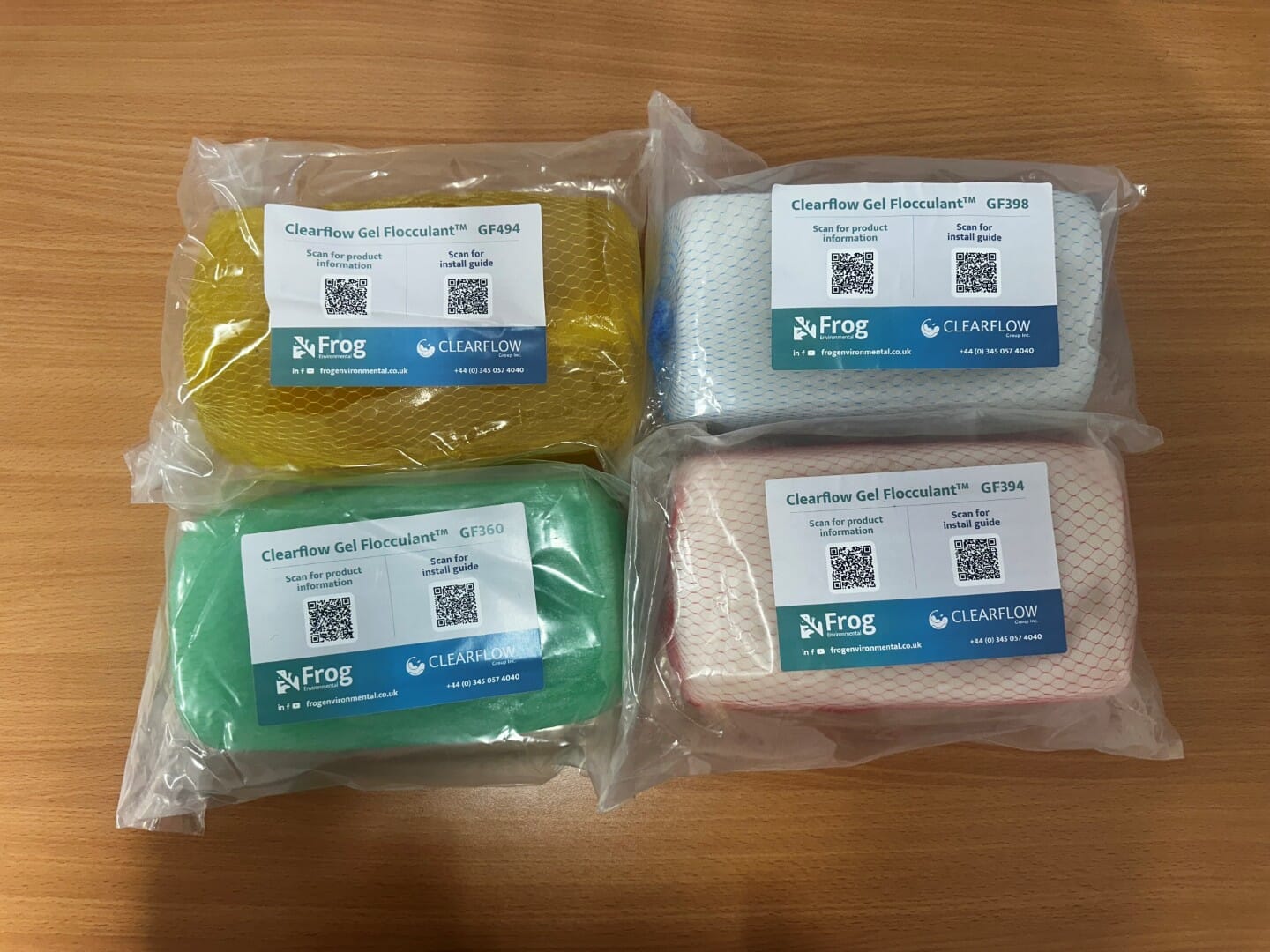

Gel Flocculant blocks at Frog Environmental

Pipe-Reactor-in-action-at-Volker-Wessels-UK-training-800x600

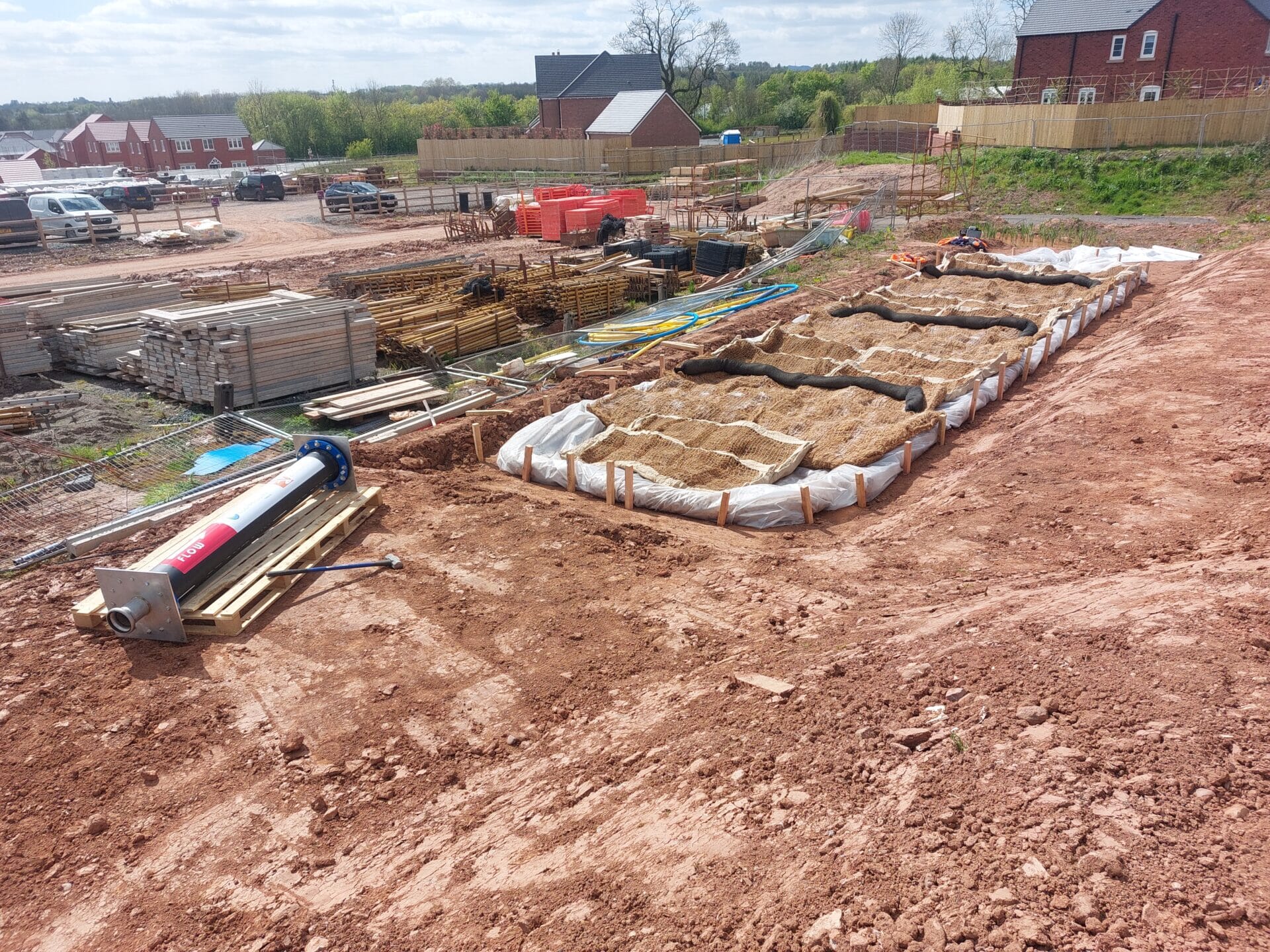

A Silt Capture Channel using a series of silt capture products developed by Frog Environmental

Key benefits

Environmentally safe, crystal clear water that meets regulatory compliance

Rapid silt settlement

Accelerates sedimentation from hours or days to seconds

Highly economical

Whole life costs considerably lower than tank-based system alternatives, reducing long term project expenditure

Passive and self-dosing

Operates without pumps or dosing systems, dissolves only in turbulent flow

Versatile deployment

Effective in ditches & drains as well as pumped systems using Clearflow GFR or Pipe Reactors.

Highly economical

Non hazardous gel which is fish safe and is cited on countless environmental permits across the UK

Engineered for sites

We supply a few different variations of flocculant to suit your site’s soil chemistry. Our Technical Team will help you to determine the best set up depending on your site and project.

Technical Specification
Installation Guides
Resources & Videos
Applications

Technical specification of Clearflow’s Gel Flocculant:

Form	Dehydrated gel blocks, with multiple formulations tailored to different soil chemistries.
Block weight	2kg
Site specific specification and testing	Deployment methodology, whether pumped or passive, is determined by Frog’s technical team following the standard Settlement Test procedure. This helps to ensure correct block specification, optimum installation locations and an appropriate maintenance plan.
Deployment options	Gel Flocculant can be used with a pumped system, or passively. Passive flow systems: suitable for drains, ditches or channels, operate as carbon neutral water treatment for clay impacted waters, offering a unique sustainability advantage. Pumped systems : use Pipe Reactors or Clearflow GFRs for consistent dosing where flows are actively pumped.
Installation and maintenance	The blocks are placed at key flow points, either in channel or in engineered housings, with periodic checks of dissolution and downstream capture as set out in each site specific maintenance plan. It is quick and easy to reorder new blocks from us and replace once depleted. Watch our installation videos or see our CAD/technical drawings for detailed guidance on installation and maintenance.
Block lifespan	Gel Flocculant blocks are part of our Rain Ready® water treatment system. They only activate with flowing water and don’t degrade in sunlight. While every site will wear the blocks at different rates depending on levels of rainfall, amount of silt loading and whether the site is actively pumping or using the blocks passively, as a guide we say blocks last around 30 days in a pumped system and up to 90 days when used passively.
Whole life costing and carbon performance	Passive deployments of Gel Flocculant are carbon neutral in operation. Whole life costs, covering installation, operation and maintenance, are typically an order of magnitude lower than tank based treatment systems.

Contact us to discuss how your project could be supported by one of our systems. We offer a non-obligatory online meeting or phone call to explain how our solutions could help you.

Installation Guides

Downloadable PDFs

Bunded Attenuation deployment

Download

Gravity-fed In-ditch Treatment deployment

Download

Gravity-fed In-ditch Sandbag Check Dam deployment

Download

Treatment via Manhole deployment

Download

Videos

In-ditch Treatment Point using Gel Flocculant

Our bio-engineered In-ditch Treatment Point works within the parameters of existing site infrastructure to create a gravity-fed treatment point for fine, mobilised silt particles, typically generated by clay-rich subsoils.

View Video

Resources

GF 360 material safety data sheet

GF 394 material safety data sheet

GF 398 material safety data sheet

GF 494 material safety data sheet

Videos

Common sources of pollution from construction sites

Hear our experts share common sources of pollution on construction sites, including how it can be washed off sites into water courses and how sediment impacts aquatic life.

View Video

Sediment and silt settling in bottles L Maiden

Removing silt from surface water

Leela, our Technical Director, explains how sediments and silts can be removed from surface waters using our flocculants.

View Video

Applications

Construction site runoff management

Surface water management is a complex, technical challenge but our innovative solutions help to reduce environmental and non-compliance risks.

Find out more

Groundworks

We have a strong track record in supporting groundworkers with products and solutions that balance stakeholder interests with time and budget constraints.

Find out more

Water treatment

We work with market-leading technology partners to deliver cost-effective solutions for the treatment of water that also minimises carbon impact.

Find out more

Mining & legacy mines

Using Clearflow Gel Flocculant™, we offer an innovative approach to safeguard freshwater resources from the impact of both active and historical mining sites.

Find out more

Question?

Frequently asked questions

Got a question about any of our products or services? Check out our FAQs, or give us a call:

0345 057 4040

How is Gel Flocculant deployed on site?

Blocks can be placed directly in flowing ditches or drains, or inserted into a Pipe Reactor or Clearflow GFR system for pumped applications.

All deployments are supported by our specialist technical team using site specific calculations and Settlement Tests to ensure correct dosage, installation and maintenance. We also offer videos and CAD drawings – see the installation tab of our product page.
What stage of a project can Gel Flocculant be used?

Gel Flocculant can be used at any stage of project, however it is most effective when we are involved early on. Early engagement allows our technical team to plan correctly and take a process driven approach to specification; saving money, time, reducing carbon and protecting the environment. Reactive use is also possible, but always follows a structured process to ensure correct usage and efficacy.
How quickly does sediment settle using Gel Flocculant?

Most silt settles within seconds, as the flocculation process dramatically accelerates particulate settling and enables clean discharge in line with regulatory requirements. Watch our video showing one of our settlement tests in action.
Is it safe to use near aquatic habitats?

Yes. Gel Flocculant is a non toxic, regulator approved technology that has been independently validated as safe for aquatic environments. Correct specification through a Settlement Test ensures effective treatment without risk of overdosing.
Do you offer technical support or site visits?

Yes. We regularly support clients with on-site assessments, installation advice, pollution prevention training and compliance planning. Contact us to arrange a visit or speak to one of our technical specialists. We happily provide practical advice and support to ensure the right product is used effectively.
How can I order or get more information?

You can contact us directly for quotes or tailored site support, visit our product’s technical section for downloadable brochures, installation guides and videos. We’re always happy to help.
What is the difference between our In-ditch Polishing Point and In-ditch Treatment Point techniques?
- In-ditch Polishing Point: consists of just Floc Mats, Silt Mats and Silt Wattles for a capturing and separating silt from flowing water. It is designed to ‘polish’ the water rather than our other treatment alternatives better designed for bulk drop out.
- In-ditch Treatment Point: includes the use of Gel Flocculant to bind fine silt particles to treat the water, as well as our mats which capture the suspended material while the surface water flows over them.

Silt control products

“Frog Environmental were knowledgeable, helping to establish a workable, cost-effective and low maintenance solution for site approved by the regulator. They really understood the water management issues we had on site and worked with us to develop a solution which works, as well as engaging with our operatives to ensure that they could effectively manage the system.

We are delighted to have found a solution that prevents pollution and protects the environment, and ultimately allows us to continue with construction.”
